Versico Flat ISO Polyiso Roof Insulation Board, 1 in. to 4 in. Thick, 4 ft x 4 ft and Larger Panels
Regular price $20.65Orders start at $399 — combine any items to reach the minimum. Learn more
Versico Flat ISO Polyiso Roof Insulation Board, 1 in. to 4 in. Thick, 4 ft x 4 ft and Larger Panels

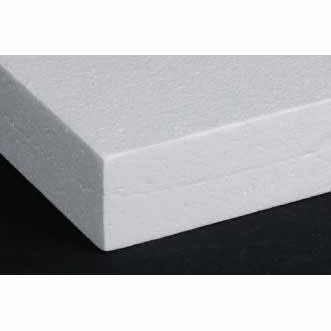

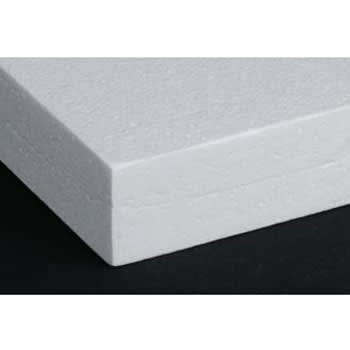

Versico Flat ISO is flat polyisocyanurate roof insulation board for commercial single-ply membrane systems, offered in thicknesses from 1 in. up to 4 in. and panel sizes of 4 ft x 4 ft, 4 ft x 8 ft, and 4 ft x 12 ft. Each variant is sold per piece in light gray. It is compatible with all Versico single-ply systems and attaches by a variety of methods.
Key Features:
- Premier roof insulation: Versico positions Flat ISO as the industry's premier roofing insulation for commercial single-ply assemblies.
- Versatile attachment: The board can be attached using a variety of methods, including mechanical fastening or adhesives per project design.
- Steel-deck approved: Approved for direct application to steel decks.
- Environmentally formulated: Zero ozone-depleting components, with an HFC- and HCFC-free formulation.
- System compatible: Compatible with all Versico single-ply roofing systems.
- Envelope-wide use: Suitable across the entire building envelope, from foundation to roof.
- Many thickness options: Twenty variants cover thicknesses from 1 in. to 4 in., including 25 psi rated options, in three panel lengths.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Versico |
| Sell unit | 1 piece (select variants by pallet or carton) |
| Product line | Versico Flat ISO |
| Material | Polyisocyanurate (polyiso) foam insulation |
| Color / finish | Light Gray |
| Available sizes | 20 variants: 1", 1.5", 2", 2.2", 2.5", 2.6", 2.7", 3", 3.3", 3.5", and 4" thick in 4' x 4', 4' x 8', and 4' x 12' panels; select 2", 2.2", 2.6", 3.3", and 4" thicknesses rated 25 psi |
| Dimensions | 4 ft x 4 ft, 4 ft x 8 ft, or 4 ft x 12 ft panels, 1 in. to 4 in. thick depending on variant |
| Thickness | 1 in. to 4 in. depending on variant |
| Compressive strength option | Select thicknesses rated 25 psi |
| Pack quantity | 1 piece per sell unit (select variants by pallet or carton) |
| Intended use | Commercial roof insulation for single-ply membrane assemblies and building-envelope applications |
Coverage & How Much You Need:
One 4 ft x 4 ft panel covers 16 sq ft; a 4 ft x 8 ft panel covers 32 sq ft, and a 4 ft x 12 ft panel covers 48 sq ft. Divide the roof area by the panel coverage, then add waste and taper allowances to size the job.
Fit and Compatibility:
Designed for use with all Versico single-ply roofing systems and Elevate-family membranes as approved by Versico specifications. Attachment method, fasteners, and adhesives are specified separately per project.
Frequently Asked Questions (FAQ):
Q: What is included in one order unit?
A: One piece of Flat ISO board in the selected thickness and panel size; most variants sell per piece, with select items packaged by pallet or carton.
Q: How much area does each panel cover?
A: A 4 ft x 4 ft panel covers 16 sq ft, a 4 ft x 8 ft panel covers 32 sq ft, and a 4 ft x 12 ft panel covers 48 sq ft before waste.
Q: How is Flat ISO attached?
A: It can be attached using a variety of methods and is approved for direct application to steel decks; follow the project specification for fasteners or adhesive.
Q: Which thickness should I choose?
A: Thickness is chosen by the roof's target R-value and assembly design; options run from 1 in. to 4 in., with some 2 in. and thicker boards rated 25 psi.
Q: Can it be used with Versico membranes?
A: Yes, it is compatible with all Versico single-ply systems.
Q: Is the foam environmentally friendly?
A: The formulation contains zero ozone-depleting components and is free of HFCs and HCFCs.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Flat ISO is the workhorse polyiso board for commercial low-slope re-roofs and new construction. Match thickness to the R-value target per layer, and consider the 25 psi variants where higher load resistance is specified. Long 4 ft x 12 ft boards speed coverage on large open decks, while 4 ft x 4 ft pieces are easier to handle around penetrations; always follow the membrane manufacturer's attachment pattern.
Polyiso boards are lightweight but large panels are awkward in wind—stack and secure them on the deck and use fall protection per OSHA roofing requirements.
Order Versico Flat ISO insulation board in the thickness and panel size your roof assembly calls for.
